VAX station

 about digital VAX station 4000 60 & 3100


If you wanna learn the VMS, !The VMS User's Guide', Jones F. Peters III, Patrick J. Holmay

 short technical data


 digital VAX Station 4000 60


system name: PMariah
OS: OpenVMS - VMS, [Ultrix, NetBSD (no scsi support)]
memory: 8Mb fixed + max 104MB on 8 slots (80-pin simm)
cpu: alpha KA46-A @ 55 MHz 256K cache
fpu: 50MHz
bus: scsi, turbochannel (TCA)
i/o: scsi, serial, parallel, tzk10 tape (320MB QIC TAPE)
network: AUI and BNC
hardisk: one RZ200 100MB and one RZ300 200MB disks
video: 1280x1024 8-plane @ 72Hz RGB
number & condition: one without hds, frame buffer, cover and memories; later founded 2 hd, frame buffer (sma endless ways :), cover.
date: 1993


 digital VAX Station 3100 m42


system name: PVAX rev#7
OS: OpenVMS - VMS, [Ultrix, NetBSD (no scsi support)]
memory: 4Mb fixed + max 16Mb on 1 slot
cpu: alpha KA42-A CVAX chip @ 90ns, 64KB external cache
fpu:
bus: scsi
i/o: scsi, parallel, 2 serial, 3.5' floppy
network:
hardisk:
date: 1987 ?

 links

ftp://ftp.europe.digital.com/public/vms/vax/v6.2/
ftp://ftp.uab.es/pub/vms/
ftp://freevms.nvg.org/pub/vms/freevms/
http://www.compaq.com/products/quickspecs/SOC_Archives
http://www.vax.org
http://www.decvax.org
http://www.vaxarchive.org

 pictures


 nmap


Starting nmap V. 3.00 ( www.insecure.org/nmap/ )
Host vaxdam (192.168.0.215) appears to be up ... good.
Initiating SYN Stealth Scan against vaxdam (192.168.0.215)
Adding open port 109/tcp
Adding open port 13/tcp
Adding open port 11/tcp
Adding open port 53/tcp
Adding open port 25/tcp
Adding open port 9/tcp
Adding open port 37/tcp
Adding open port 599/tcp
Adding open port 23/tcp
Adding open port 515/tcp
Adding open port 79/tcp
Adding open port 15/tcp
Adding open port 2049/tcp
Adding open port 111/tcp
Adding open port 514/tcp
Adding open port 6000/tcp
Adding open port 21/tcp
Adding open port 1024/tcp
Adding open port 110/tcp
Adding open port 19/tcp
Adding open port 513/tcp
Adding open port 512/tcp
Adding open port 7/tcp
The SYN Stealth Scan took 20 seconds to scan 1601 ports.
Initiating UDP Scan against vaxdam (192.168.0.215)
The UDP Scan took 16 seconds to scan 1468 ports.
Adding open port 1025/udp
Adding open port 161/udp
Adding open port 518/udp
Adding open port 2049/udp
Adding open port 9/udp
Adding open port 7/udp
Adding open port 19/udp
Adding open port 13/udp
Adding open port 517/udp
Adding open port 111/udp
Adding open port 37/udp
Adding open port 53/udp
For OSScan assuming that port 7 is open and port 1 is closed and neither are firewalled
Interesting ports on vaxdam (192.168.0.215):
(The 3034 ports scanned but not shown below are in state: closed)
Port State Service
7/tcp open echo
7/udp open echo
9/tcp open discard
9/udp open discard
11/tcp open systat
13/tcp open daytime
13/udp open daytime
15/tcp open netstat
19/tcp open chargen
19/udp open chargen
21/tcp open ftp
23/tcp open telnet
25/tcp open smtp
37/tcp open time
37/udp open time
53/tcp open domain
53/udp open domain
79/tcp open finger
109/tcp open pop-2
110/tcp open pop-3
111/tcp open sunrpc
111/udp open sunrpc
161/udp open snmp
512/tcp open exec
513/tcp open login
514/tcp open shell
515/tcp open printer
517/udp open talk
518/udp open ntalk
599/tcp open acp
1024/tcp open kdm
1025/udp open blackjack
2049/tcp open nfs
2049/udp open nfs
6000/tcp open X11
Remote operating system guess: VMS MultiNet V4.2(16)/ OpenVMS V7.1-2
Uptime 0.040 days (since Wed Mar 5 12:29:25 2003)
TCP Sequence Prediction: Class=truly random
Difficulty=9999999 (Good luck!)
IPID Sequence Generation: Incremental

Nmap run completed -- 1 IP address (1 host up) scanned in 40 seconds

 list of files hosted

  All_VAX_hardware_reference.htm  Cable_Guide.htm
  Chuck's_House_of_VAX.htm  DECUServe_VAX_Notes.txt
  Data Instruments - DEC Equipment.htm  FileSearch - ftp_europe_digital_com-public-vms-vax-v6_2.htm
  Forbidden VMS pages.htm  Memory_Option_Chart.htm
  OpenVMS VAX Version 7_3 Upgrade and Installation Manual.htm  OpenVMS_7.3_official_faq.pdf
  PoorMan Series of Pseudo Device drivers for VAX-VMS.htm  SYSINFO.COM
  TSMreadme.txt  The_MicroVAXVAXstation_FAQ.htm
  Tru64-UNIX-Managers Archive (2001-03) - SUMMARYDECserver700 .htm  UPTIME.COM
  VAXarchive.org.htm  VAXstation_CPUs_and_names.txt
  Writing CDs for VMS.htm  Writing VMS-format CD-ROMs.htm
  clearvms.txt  dec_links.txt
  decvax.org.htm  digital_logo.gif
  disk_space.com  ka46_boot.txt
  linux_vax-2.html  logo.gif
  mouse_DEC.txt  poormancd.tgz
  poormandisk.tgz  servr-tx.html

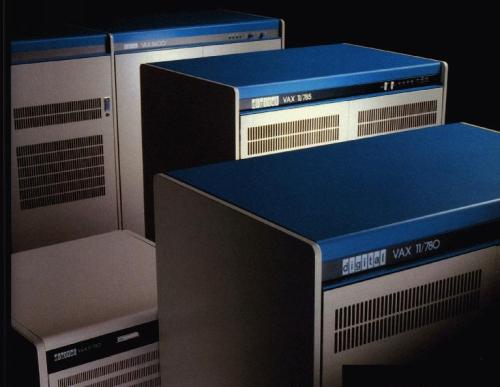

  sokvax.jpg  vax.htm

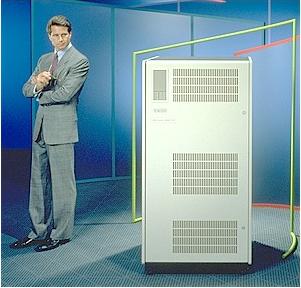

  vax6500.jpg  vax_VMS55_changeSYSTEMpasswd.txt
  vmscd.html  vmsfaq.pdf
  vmsfaq.tar.gz  vmsman.tar.gz
  _bin
  DEC-AXPVMS.PCSI-DCX_AXPEXE  MOZILLA-OPENVMS.SFX_AXPEXE
  OpenVMS Mozilla - download.htm  gcc-vms-1.42.tar.gz
  index.html  index2.html
  index3.html  index4.html
  opensource.html  opensource.html2.html
  query.html
  _bin/MOSAIC
  MAKE_MOSAIC.COM  MMK.ZIP
  MOSAIC3_6-2.ZIP
  _bin/gnu
  copying  gnu_tools.com
  _bin/gnu/alpha
  bzip2.exe  decode_64.exe
  diff.exe  gawk.exe
  gunzip.exe  gzip.exe
  make.exe  patch.exe
  sed.exe  tar.exe
  unzip.exe  uudecode.exe
  uuencode.exe  vmstar.exe
  zcat.exe  zip.exe
  _bin/gnu/vax
  bzip2.exe  decode_64.exe
  diff.exe  gawk.exe
  gunzip.exe  gzip.exe
  make.exe  patch.exe
  sed.exe  tar.exe
  unzip.exe  uudecode.exe
  uuencode.exe  vmstar.exe
  zcat.exe  zip.exe
  _bin/httpd_vms
  http_server_3-10a.zip  osuhttp.html
  vms.html  vms_inet.htmlx.html
  3100
  DECUServe_WORKSTATIONS_Conference_8.htm  VAXStation_3100_M48_M40_memory.htm
  4000
  10_opened_mb.jpg  11_components.jpg
  12_mboard.jpg  1_front.jpg
  2_frontpanel.jpg  3_view.jpg

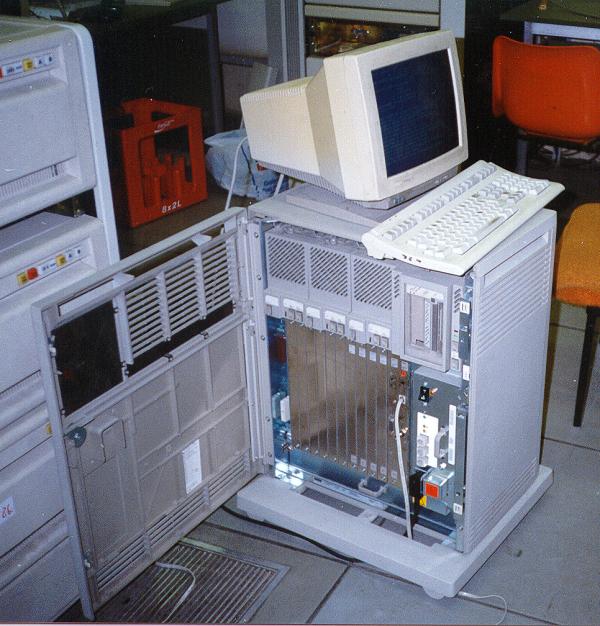

  4000-200.jpg  4_backall.jpg
  5_backright.jpg  6_backleft.jpg
  7_opening.jpg  9_opened_all.jpg
  VAXstation_4000-60_info.htm  VAXstation_4000_60_mem.htm
  firmware_VAX_4k90firm.bin.bz2  qb0011pf.pdf
  qb003umw.doc  qb003upf.pdf
  4000/VAXstation_4000-60_info
  1-small.jpg  11-small.jpg
  12-small.jpg  13-small.jpg
  2-small.jpg  3-small.jpg
  4-small.jpg  5-small.jpg
  6-small.jpg  7-small.jpg

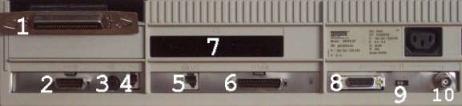

  9-small.jpg  vaxstation4000-60-back-connectors.jpg
directory binary, exec web html file image file
ps, pdf archive file text file other
