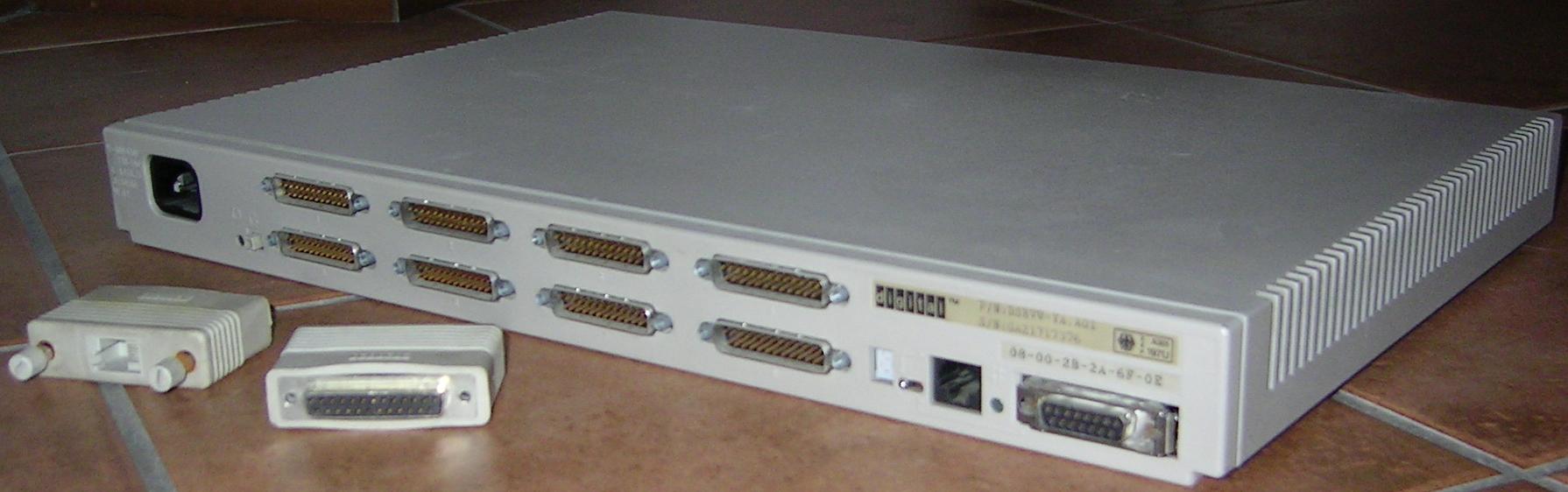

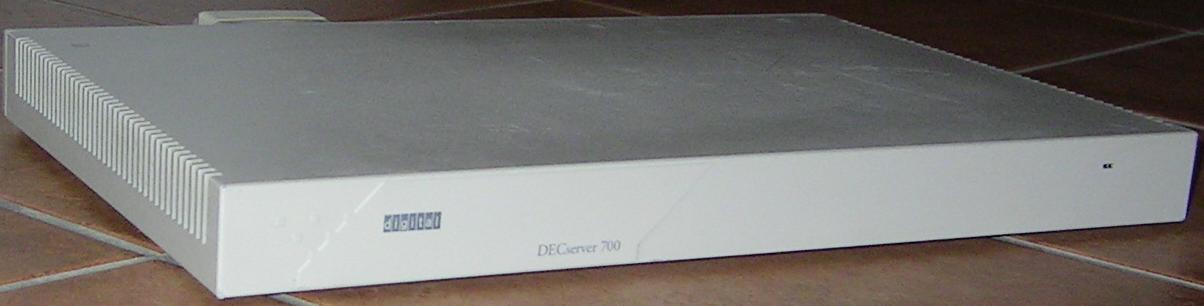

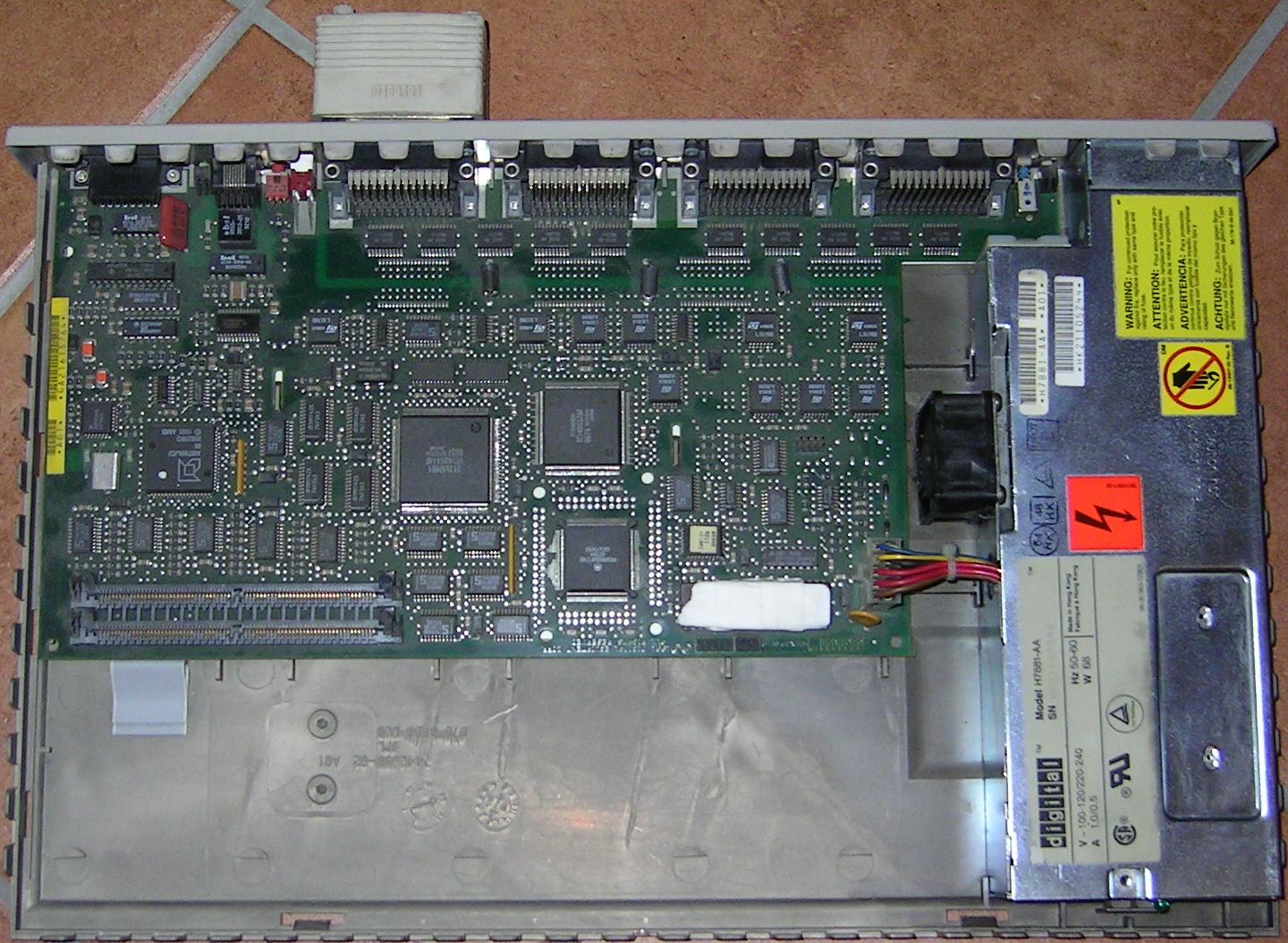

DEC server  about digital DEC server 700 & 200MC They are sort of routers providing decnet or serial and ethernet connections. Their original purpose was to connect a VAX/PDP to terminals (and printers). It is able to connect a LAN to up to 8 modems or terminals or PCs or printer or... to use the serials as DECnet connections you'll need MJ8 (or MMJ) to 25pin transceiver (the 6 signals are the same in RS232 and in MJ8)  short technical data  DEC Server 700 - DSRVW-YA OS: a router-like system memory: 2 30 pin simm, max 8 MB cpu: motorola 68020 network: AUI or RJ-45, eight RS-232 DB25 (V.24/V.28) eeprom: about 1MB eeprom, you'll need to boot from network with bootp and tftp. Newer models have a 2MB flash memory slot (so it don't need to search its address and program onto the net date: 1989 kit available to put it into racks  DEC Server 200/MC nothing about it, but it's like a DS 700... It is an old big ugly decserver with 8 RS-232 too, it have a AUI to connect to ethernet and no lightcode  links http://dnpg.com  pictures  list of files hosted   700-16.htm   ClassicCmp Mailing List Re DECServer again.htm   Compaq_com - Access Servers - Terminal Server Manager for Op.htm   DEC_access_server_manager2.1.tar.gz   DECserver732.pdf   Digital Networks - Products_decserver.htm   Network Products_ Access Server Manager.htm   SUMMARYDECserver700 from 5_0A.htm   TSMreadme.txt   Tru64-UNIX-Managers Archive (2001-03) - SUMMARYDECserver700 .htm   clearvms.txt   decserver_back.jpg   decserver_front.jpg   decserver_inside.jpg   decserverpass.htm   decserverpass1.htm   dserv.html   dsrvw.pdf   servr-tx.html   weng_FIRMWARE   wweng1.sys.gz   wweng1.sys_1   wweng1.sys_2   wweng2.sys.gz   wwengs.tar.gz legend directory binary, exec web html file image file ps, pdf archive file text file other >> go on top << home workstations Sony NeWS Apollo Domain Series Digital VAXstation DECpc IBM PS/2 IBM PowerPc IBM XT 8088 Sun SparcStation servers Compaq ProSignia text & graphic terminals IBM Xstation notebooks amstrad PPC512 other DEC Server IBM Storage network video etc... misc web links photo gallery search in tollari.org pages powered by freefind search in internet powered by google
